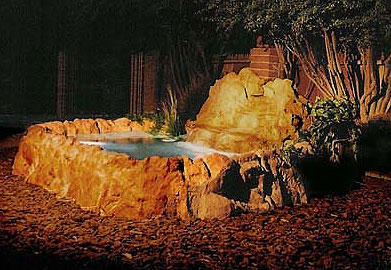

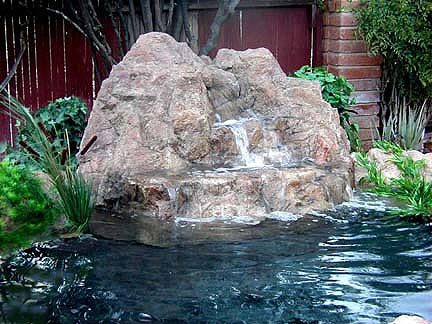

This is our above-ground pond with three tier waterfall. The overall width is 10 ft and the depth is 9 ft 6 inches. The walls are 18 inches high. The water depth is 11 inches. The 40 gpm pump delivers enough water to create a very pleasing sound. A skimmer and bio-filter are included to make it easy to maintain and care for your new pond.
It only takes about two hours to install this beautiful pond!
 These sections hold the rubber liner and are bolted together. "L" sections
|

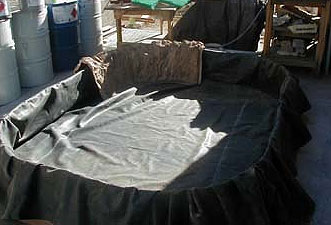

 The rubber liner is placed on the "L" sections. The rubber liner must be pushed into the the back of the "L" so that when filled with water it does not pull.
|

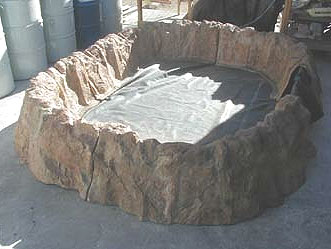

 The rock sections are added, leave a two foot section clear in the back where the waterfall will go. The two foot section in the front has a pump and filter. The pump section is slightly larger than shown.
|

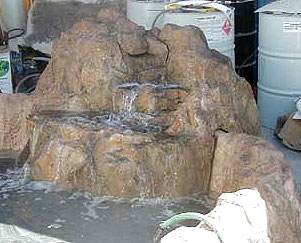

 After the pump and hose are placed in the rock sections. The waterfall is added and the hose hooked up. Water is added and the pond is checked for alignment. Pebbles must be added to the bottom of the pond to protect the rubber liner from the sun.
|
